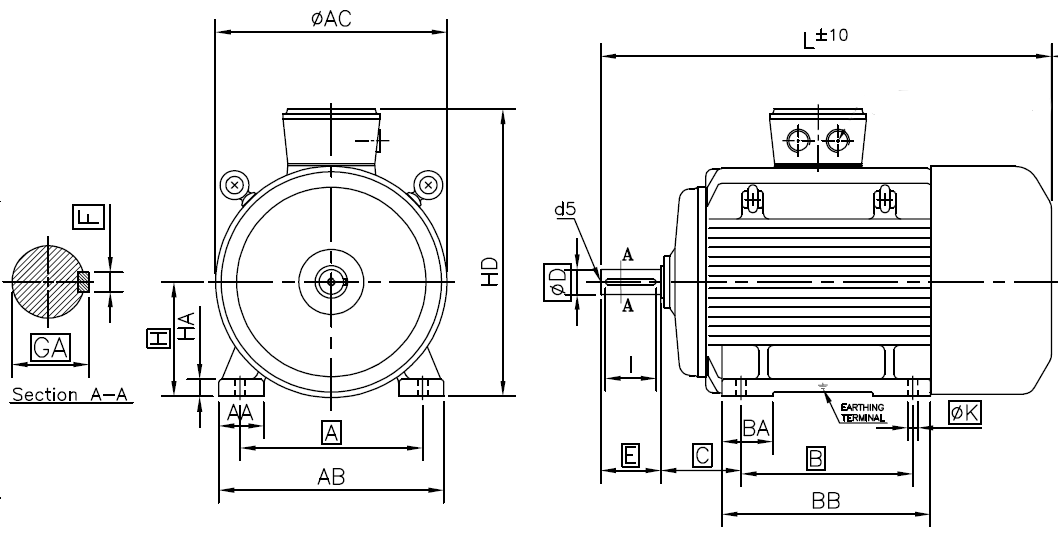

Motor Dimensions - SCIM (B3)

Id Frame Poles A B C H K D E F GA Bearing-DE Bearing-NDE Actions
1
63
2, 4 100 80 40 63 7 11 23 4 12.5 6201 2Z 6201 2Z
2
71
2, 4, 6, 8 112 90 45 71 7 14 30 5 16 6202 2Z 6202 2Z
3
80
2, 4, 6, 8 125 100 50 80 10 19 40 6 21.5 6004 2Z 6004 2Z
4
90S
2, 4, 6, 8 140 100 56 90 10 24 50 8 27 6205 2Z 6205 2Z
5
90L
2, 4, 6, 8 140 125 56 90 10 24 50 8 27 6205 2Z 6205 2Z
6
100L
2, 4, 6, 8 160 140 63 100 12 28 60 8 31 6206 2Z 6206 2Z
7
112M
4, 6, 8 190 140 70 112 12 28 60 8 31 6306.2Z/6206-2Z 6306.2Z/6206.2Z
8
132S
2, 4, 6, 8 216 140 89 132 12 38 80 10 41 6208 2Z 6208 2Z
9
132M
4, 6 216 178 89 132 12 38 80 10 41 6208 2Z 6208 2Z
10
160M
2, 4, 6, 8 254 210 108 160 15 42 110 12 45 6309 2Z 6209.2Z
11
160L
2, 4, 6, 8 254 254 108 160 15 42 110 12 45 6309 2Z 6209.2Z
12
180M
2, 4, 8 279 241 121 180 15 48 110 14 51.5 6310.2Z 6210.2Z/6310.2Z
13
180L
4, 6, 8 279 279 121 180 15 48 110 14 51.5 6310.2Z 6210.2Z/6310.2Z
14
200L
2, 4, 6, 8 318 305 133 200 19 55 110 16 59 6312.2Z 6212.2Z
15
225S
4, 8 356 286 149 225 19 60 140 18 64 6313.2Z 6313.2Z, 6213
16
225M
2 356 311 149 225 19 55 110 16 59 6313.2Z 6313.2Z, 6213
17
225M
4, 6, 8 356 311 149 225 19 60 140 18 64 6313.2Z 6313.2Z, 6213
18
250M
2 406 349 168 250 24 60 140 18 64 6315 6215
19
250M
4, 6, 8 406 349 168 250 24 65 140 18 69 6315 6215
20
280S/M
2 457 368 190 280 24 65 140 18 69 6317 6217
21
280S/M
4, 6, 8 457 368 190 280 24 75 140 20 79.5 6317 6217
22
315S/M
2 508 406 216 315 28 65 140 18 69 6319 6319
23
315S/M
4, 6, 8 508 406 216 315 28 80 170 22 85 6319 6319
24
315L
2 508 508 216 315 28 65 140 18 69 6319 6319
25
315L
4, 6, 8 508 508 216 315 28 90 170 25 95 6319 6319
26
355L
2 610 630 254 355 28 75 140 20 79.5 6322 6322
27
355L
4, 6 610 630 254 355 28 110 210 28 106 6322 6322
28
NGD450 (HT)
4 750 1000 315 450 20 120 205 32 127 NU226C3 NU218+6218C3
